niztec_products_About_EL_Wire
  Through eye-catching display effects with 360º luminescence, free three-dimensional expression is available like wires!
EL Wires are produced in various colors of 11kinds, and it makes expression of lights in soft pastel type possible. You can also experience excellent display effects even at the daytime as it maintains distinct colors when not luminescent

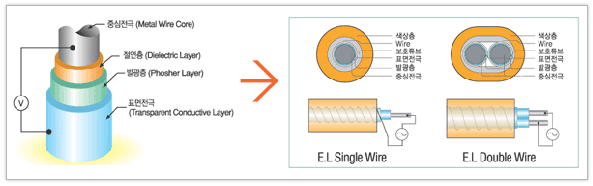

niztec_products_Structure_of_EL_Wire
  Evangelism is the heart of the chain copper and copper wire around the insulating layer and the fluorescent layer that surround the outer layer and a transparent outer layer is composed of a challenge. Internal and external challenges in the current, applying a layer of light emitting fluorescent layer structure.
niztec_products_Structure_Of_EL_Wire_image

niztec_products_Features_of_EL_Wire
  •No pause and 360º luminescence
Flexible length like wires
•Safe from fires because of no heat generation
•Free three dimensional expression in straight line, curved line, etc
•Suitable for indoor & outdoor environment due to high water-resistance
•Various thickness: ø2.3, ø3.2, ø5 m/m

niztec_products_Usage_of_EL_Wire
  •Safety & Relief Supplies
•interior & Exterior
•Stage Costume & Event Items
•Graduation Works & Art Works
•Car & Computer Accessories

niztec_products_Colors_of_EL_Wire


Blue-Green

Green Ultra-Marine Lime Red

Pink

Purple Yellow Hot-Red Orange

White


niztec_products_Specifications_of_EL_Wire

Description Single Wire Double wire
Thickness 0.9mm, 1.4mm, 2.3mm, 3.2mm, 4mm, 5mm 2.8mm * 3.5mm(oval)
Color Blue-Green, Green, Ultra-Marine, Lime, Red,
Pink, Purple,Yellow, Orange, Hot-Red, White
Blue-Green, Ultra-Marine,
Green,Yellow, Red, Purple
AC/DC Ac 100 ~ 130V AC 200 ~ 240V
Frequency 400HZ ~ 4,000HZ 400HZ ~ 4,000HZ
Charge Humidity < 40% < 40%
Charge Temperature 15°C ± 30% 15°C ± 30%
ActingTemperature -20°C ~ 60°C -20°C ~ 60°C
Maximum Winding
Permission
5 times wire diameter
5 times wire diameter
Twisting strength 1kg 2kg
Twisting Angle 30°/M 30°/M
Consumption of
Electric Current
(mA/1meter)
1.51mA 1.53mA
Maximum Permission
of Electric Current
(mA)
100mA 1A
· NOTE : 1. Consumption of Electric Current is Single Wire: 110V * 400HZ input / Double Wire: 220V * 400HZinput
