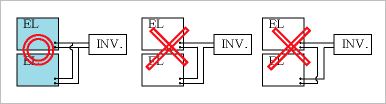

•Multi-wire

  - When 2 sheets and more EL are wired by using one inverter, it should be connected in parallel and also, its polarity should be matched.

  - You should connect 2 inverters to one EL sheet in order to make it brighter.

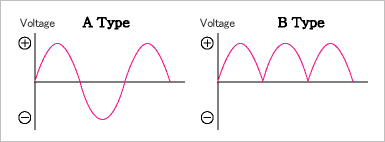

•Electrode characteristics


- EL is basically driven by AC signal like fig (A) and also, it can be driven by waveform signal like (B). But in this case, please surly set up + AC electric potential on surface electrode side.
