•Summary and explanation

  - EL is emitted by applying AC voltage between electrodes.
- EL can be driven by inverter circuit like driven by voltage and frequency.
- Generally, you can increase luminance reduction time by calibrating it as increasing voltage in inverter circuit.
- You can properly and selectively use inverter according to each specification such as emitted EL area, necessary luminance, electric power specification (AC or DC), inverter case size, etc.
- Generally, inverter emits EL at about 50 ~ 150 Vrms output voltage and about 200 ~ 2,000 HZ output frequency. Especially, in the case that it is lit up for a long time, please operate it under 400 Hz.
- In the case that it is lit up at the same inverter, the smaller applied EL are is, the higher output voltage and output frequency are, which makes luminance higher.
- Although it can be lit up by directly applying AC 100V, 50 ~ 60Hz without using inverter, there is never the effect in bright place of 10cd/ m©÷ luminance level. In this case, please connect 125V, 0.1A fuse in parallel.
- Especially, please surly avoid direct contact with AC 200V.

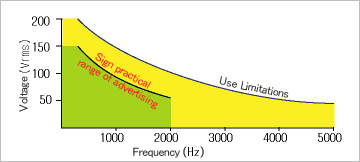

•Driving condition range

- When it is used for commercial signs, usually, it is used under 400 ~ 500 Hz, 100 ~ 120 Vrms.
- In the case that using voltage and frequency are beyond using limitation, it may be cause of EL damage by heat.

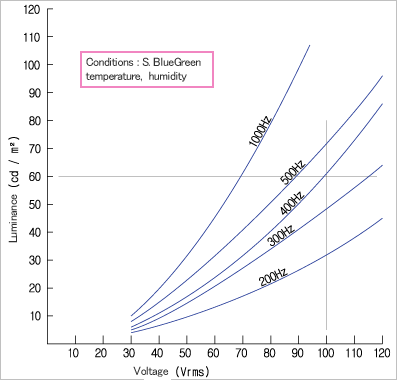

• Brightness - voltage - frequency characteristics

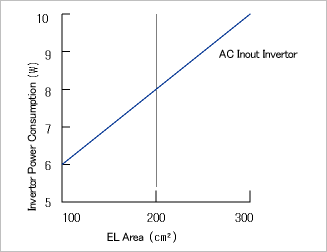

• About consumed electric power

  - Although consumed power is different according to inverter characteristics, generally, EL size is 300 cm©÷ and in the case that luminance is 90 cd/m©÷, consumed power is 10W.
- Irrespective of EL area, it is better to use DC battery for ordinary high luminance illumination. As for low voltage electric power, it is better to use AC adaptor.
- In lighting up EL, inverter¡¯s resonance sound and too hot temperature are not product¡¯s abnormal condition. As for EL sheet, if you used many sheets, weak resonance sound may be generated, which is not abnormal condition.
